25Hz Stand-alone GPS Lap Timer + QRacing PC Software + Data Analysis, integrating 2.3” Color Display & IPX-5 water resistance & 14 hrs long battery life!!

With its compact size and precise timing performance, the LT-9000S is the top choice for lap timers in two-wheeled motorcycles, and also excellent for 4-wheeled automobiles. The LT-9000S is big upgrade from the LT-6000S, but its functionality is comparable to the LT-9000S. This standalone GPS lap timer can analyze various types of races, such as circuit racing, drag racing, or performance testing, with an incredible accuracy of up to 0.04 seconds per waypoint.
Compact design, yet uncompromising performance, featuring advanced high-precision 25Hz data logging, a 2.3-inch color display, IPX5 waterproof rating, and flexible mounting options! Instantly measure your riding performance and view lap times any time. After the race, you can sync your data to QRacing PC software for more advanced and professional chart analysis, thereby improving your riding skills.

Compact size and maintaining excellent precision

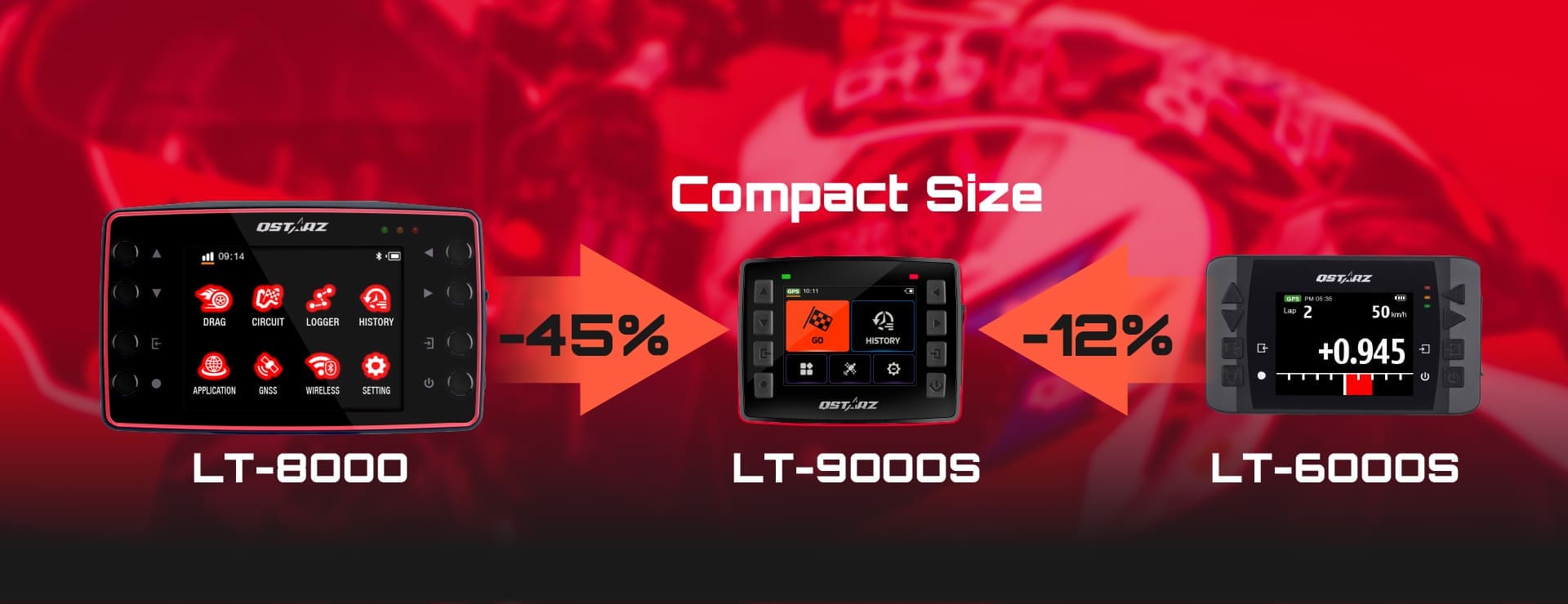

The LT-9000S features a compact design, measuring 7.9x6.1x3cm, which is 45% smaller than the LT-8000GT/8000S and 12% smaller than the LT-6000S, while maintaining high precision. The device weighs only 114 grams, and is flexible & easy to mount on motorcycle or automobile.

Integrated the latest 25Hz GNSS technology to record a waypoint every 0.04 second with incredible accuracy less than 1/100 second. Positions are measured by GPS, GLONASS, Galileo and Beidou satellites. You won’t find a timing device that is superior, guaranteed.

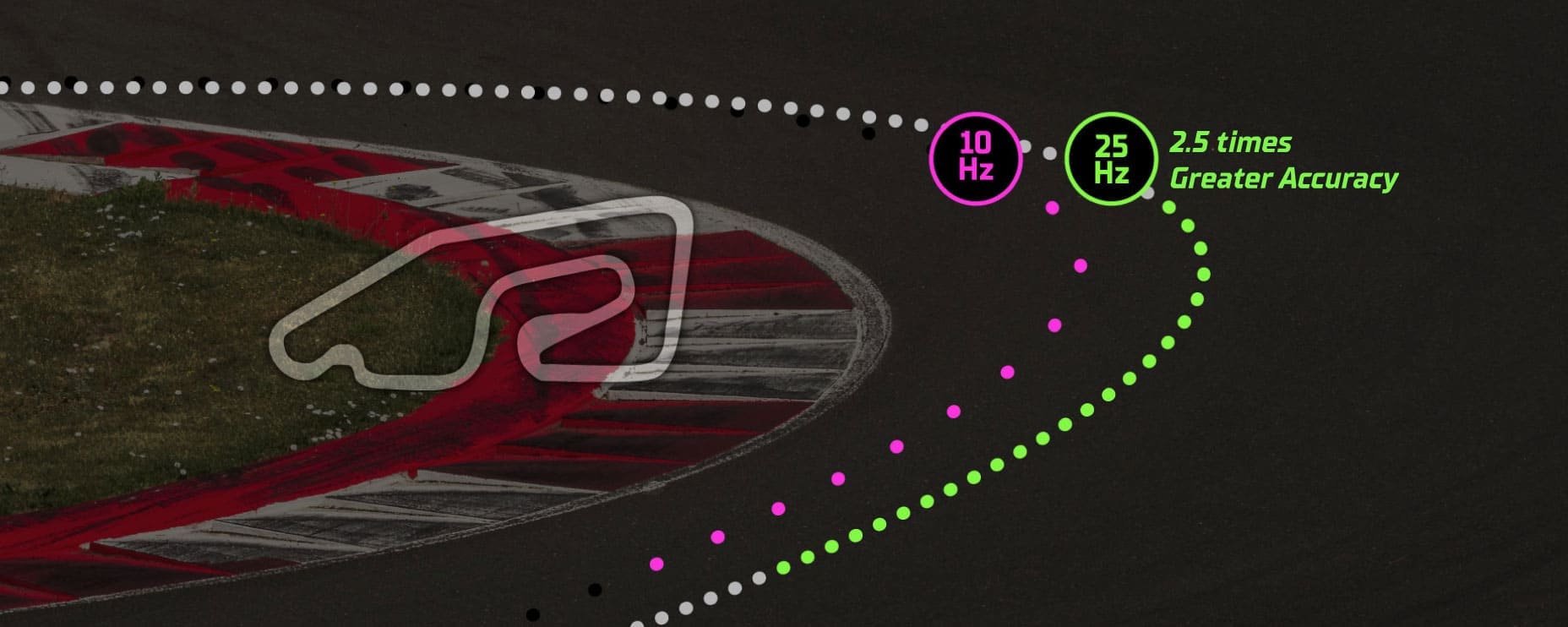

Records 25 data points per second, especially suitable for motorsport (2.5x improved accuracy)

Record your race completely and accurately. Recording 10 to 25 data points per second allows you to clearly experience the exciting moments of the race. Green dots display the latest GPS data. The 25Hz recording rate allows for more accurate data recording when cornering.

Enhanced Smart User Interface

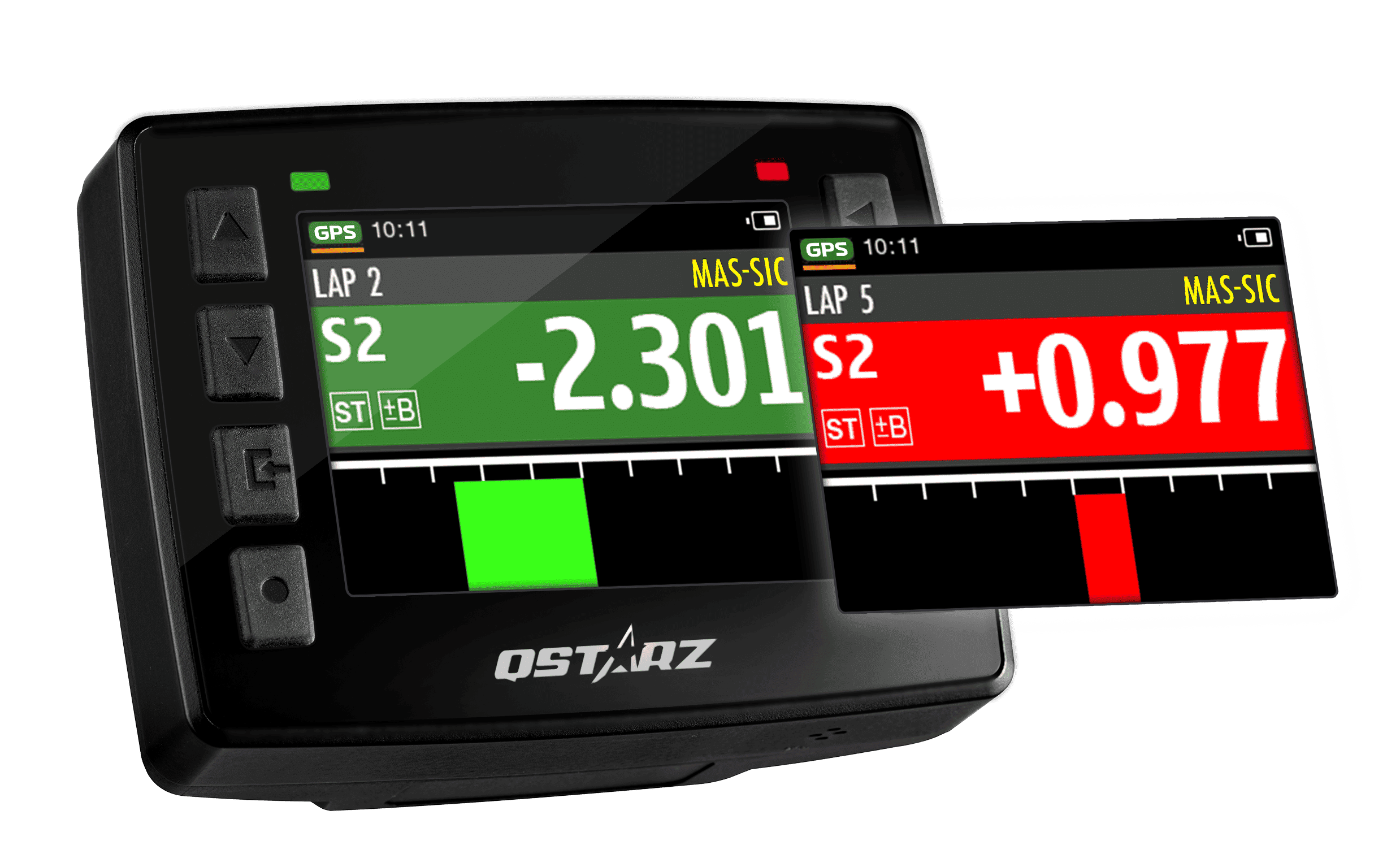

The LT-9000S features a significantly optimized timing screen, such as adjustable display area and simplified operation, incorporating the experience of Qstarz's global racing drivers and senior engineers. New red and green LED indicators show whether the rider's actual lap time is faster or slower than the predicted/compared lap time, while a built-in buzzer quickly alerts the rider to various device statuses.

Two Display area’s data adjustable and Font color adjustable

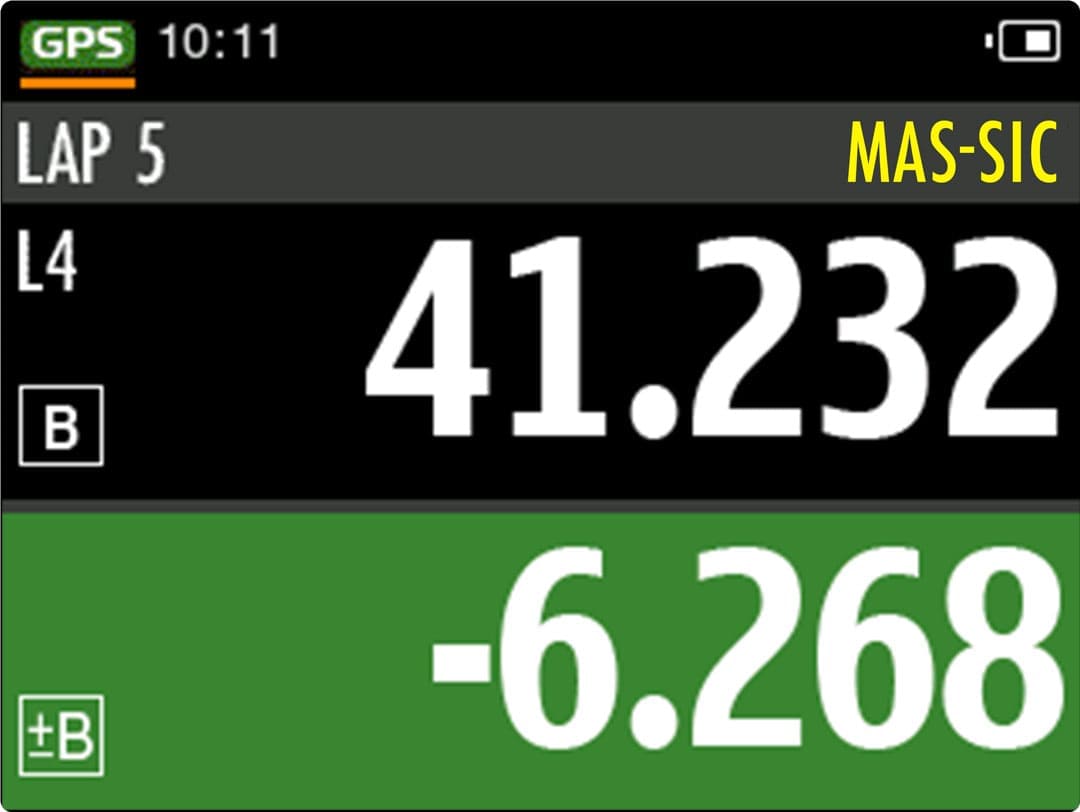

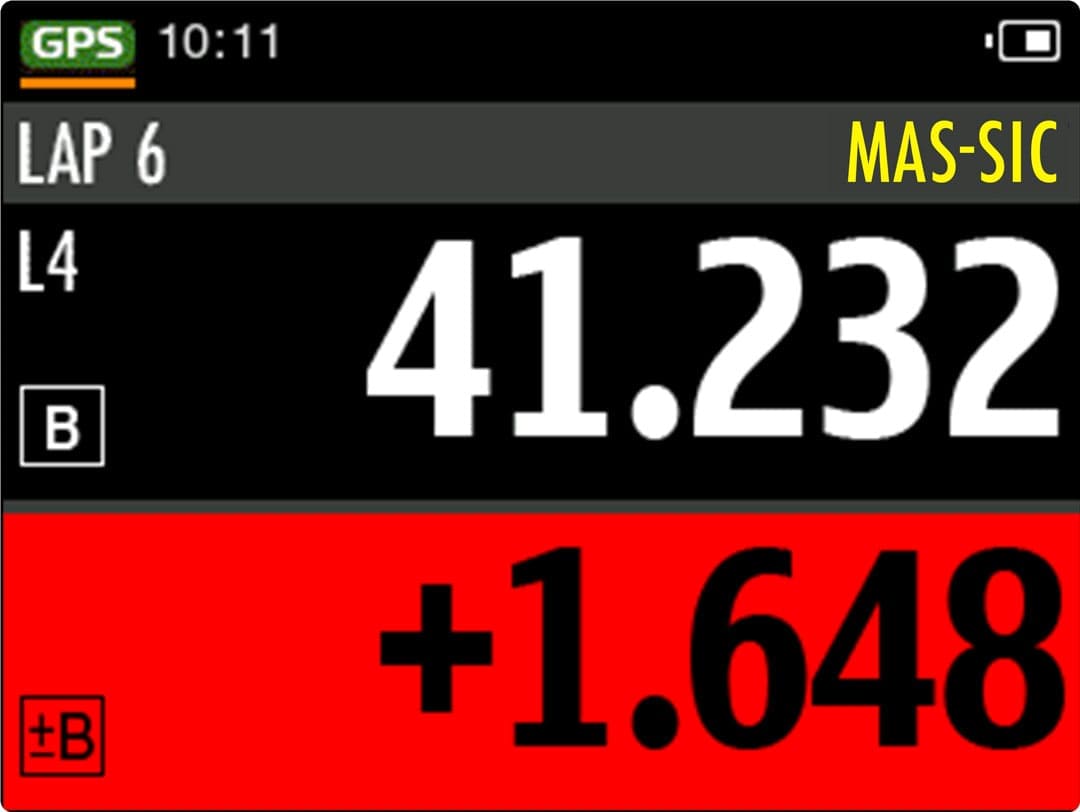

[Screen example under Circuit Race Mode, Green means faster and Red means slower]

Font White

Best lap time

Lap Time Diff

Font Black

Last lap time

Lap Time Diff

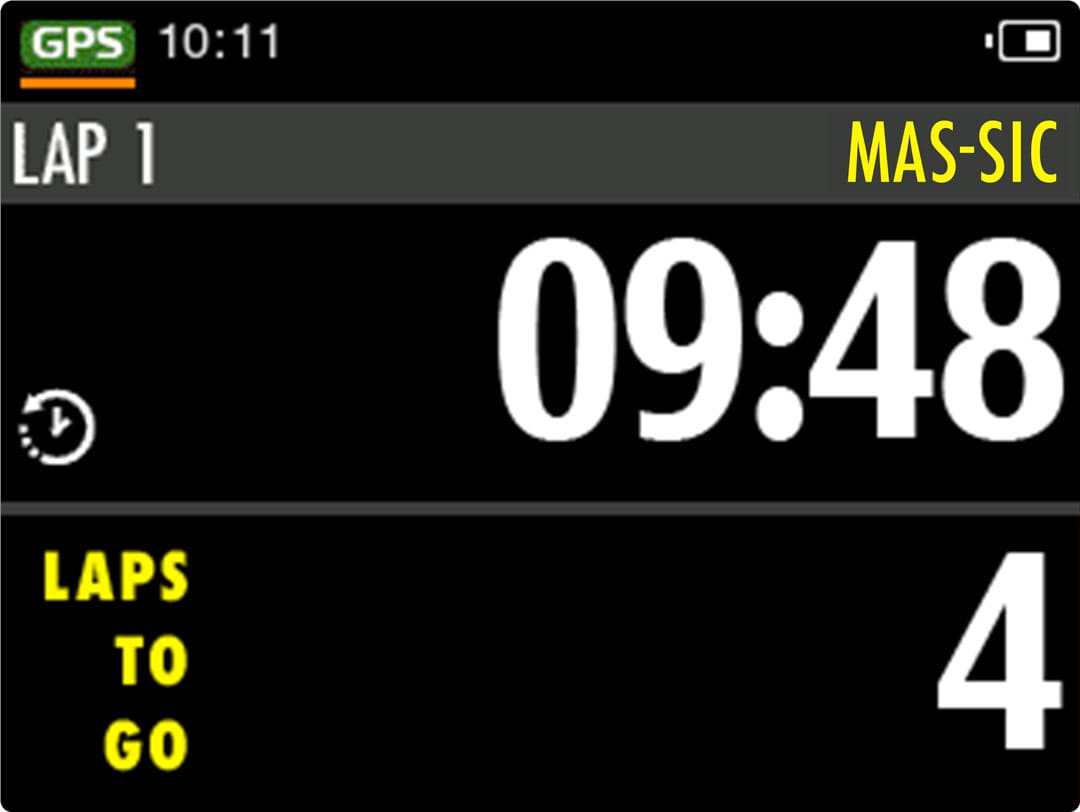

Font White

Remaining Time

Remaining Lap

Font White

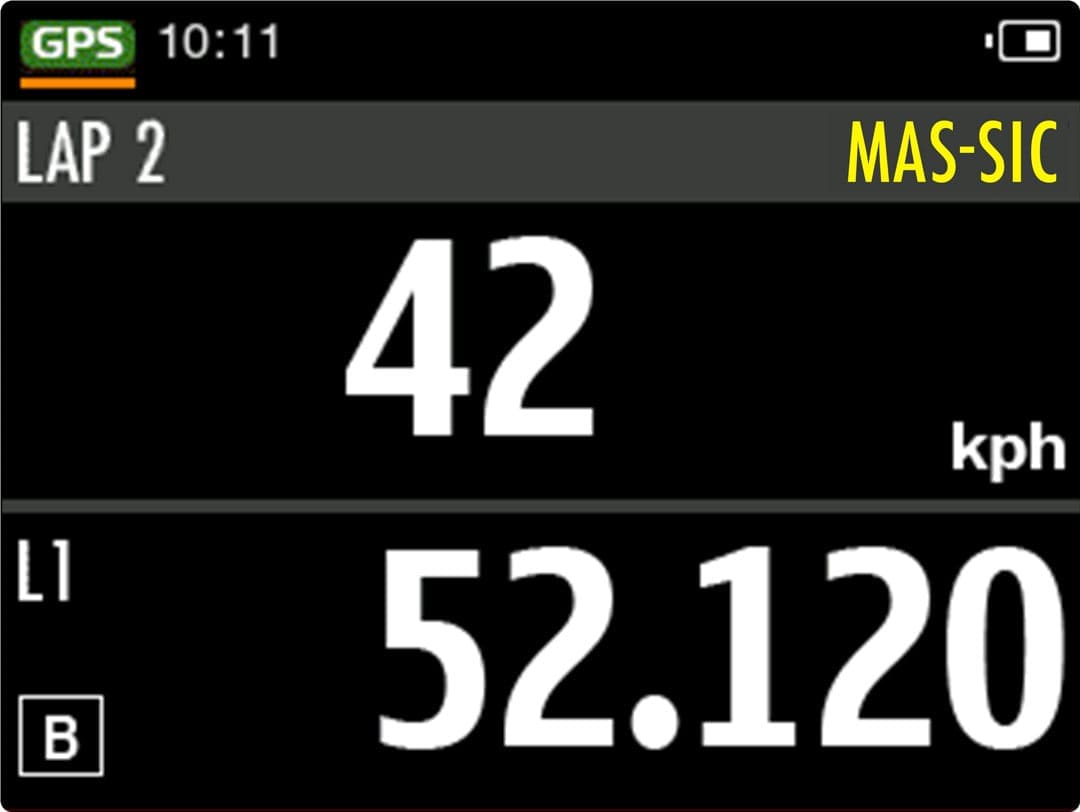

Speed

Best lap tim



Font Black

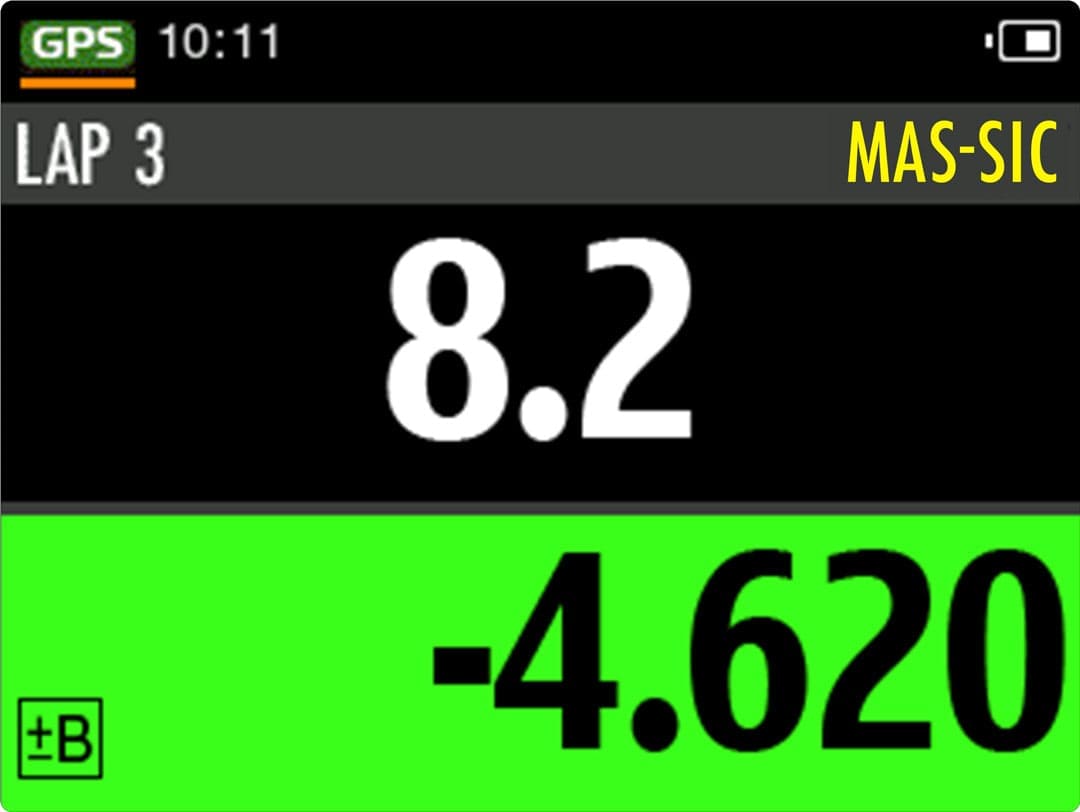

Rolling Time

Lap Time Diff

Font White

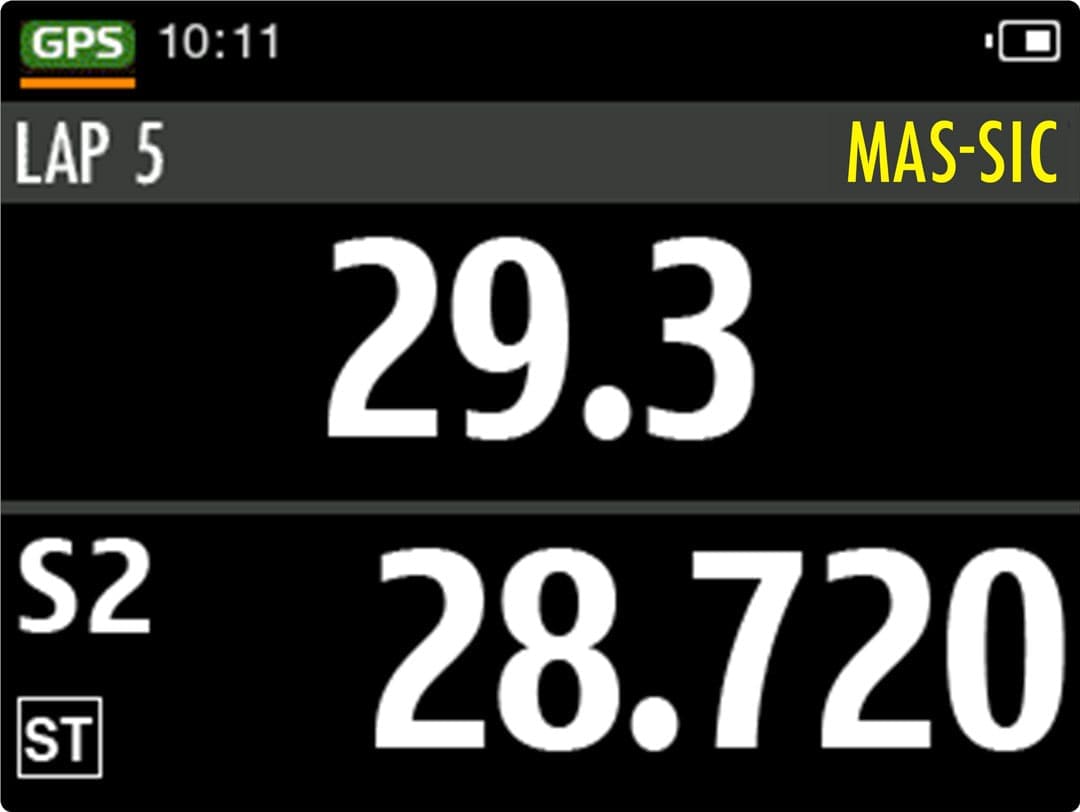

Rolling Time

Split time

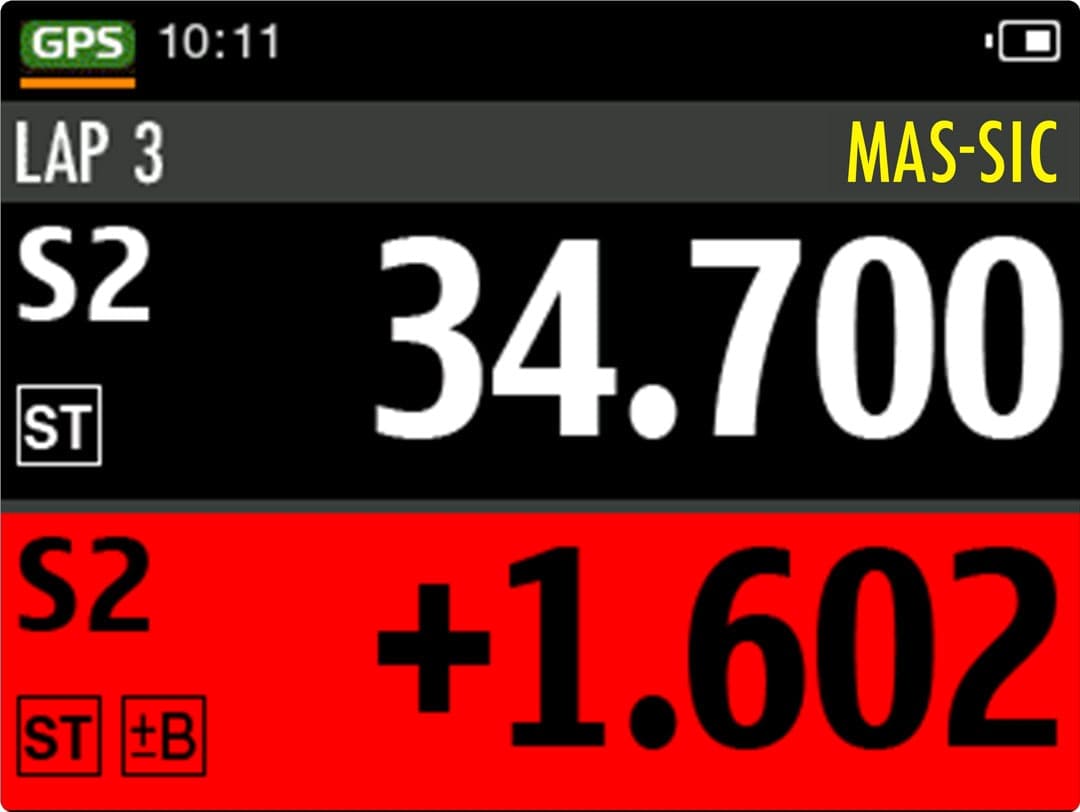

Compare: Best Lap

Font Black

Split time

Split time Diff

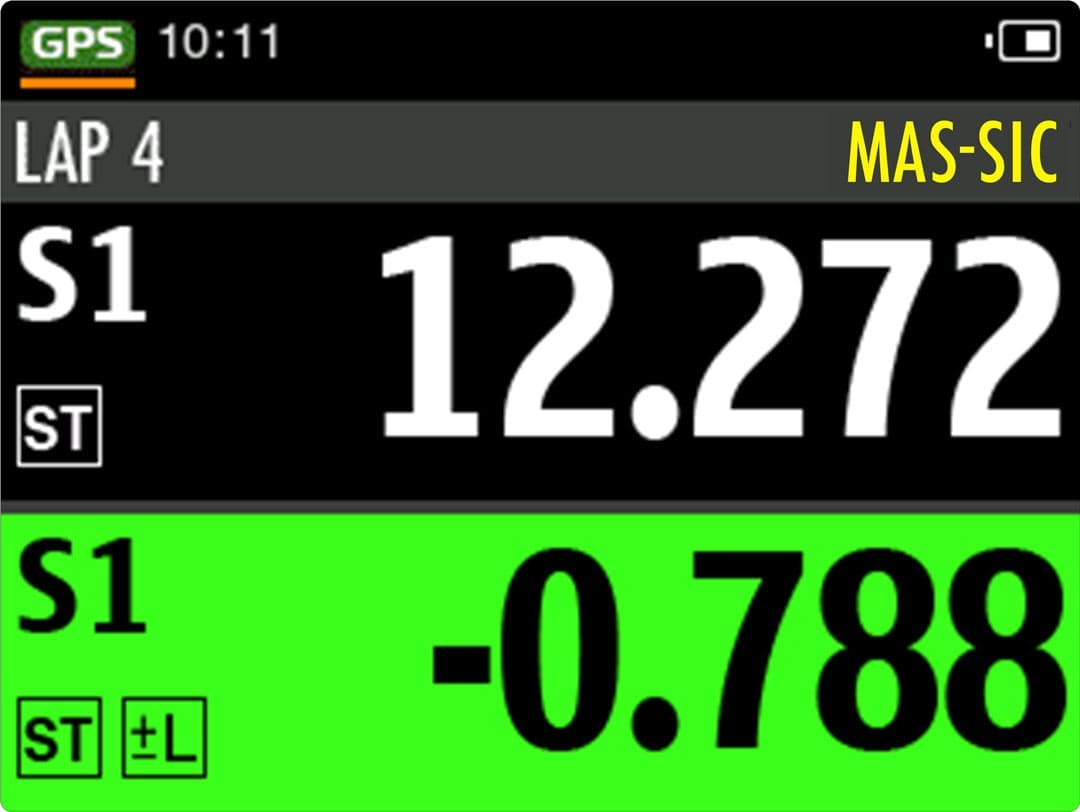

Compare: Last Lap

Font White

Split time

Split time Diff

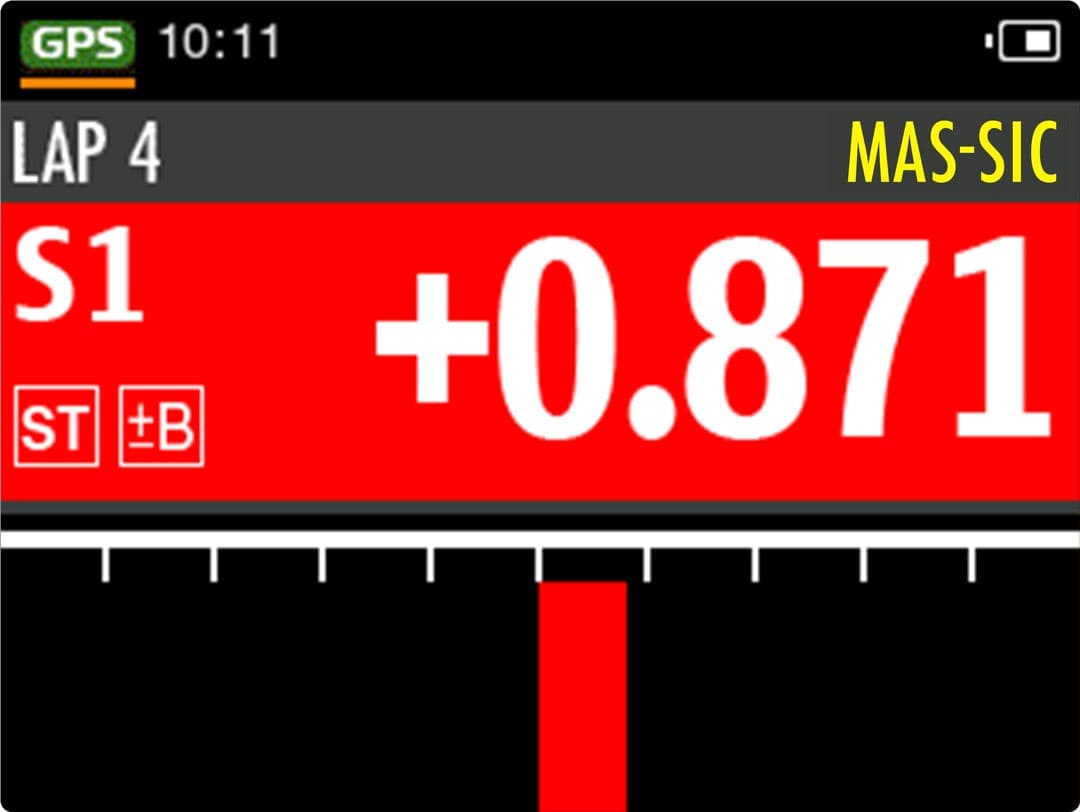

Prediction

Font White

Split time Diff

Predictive
Bar Diff

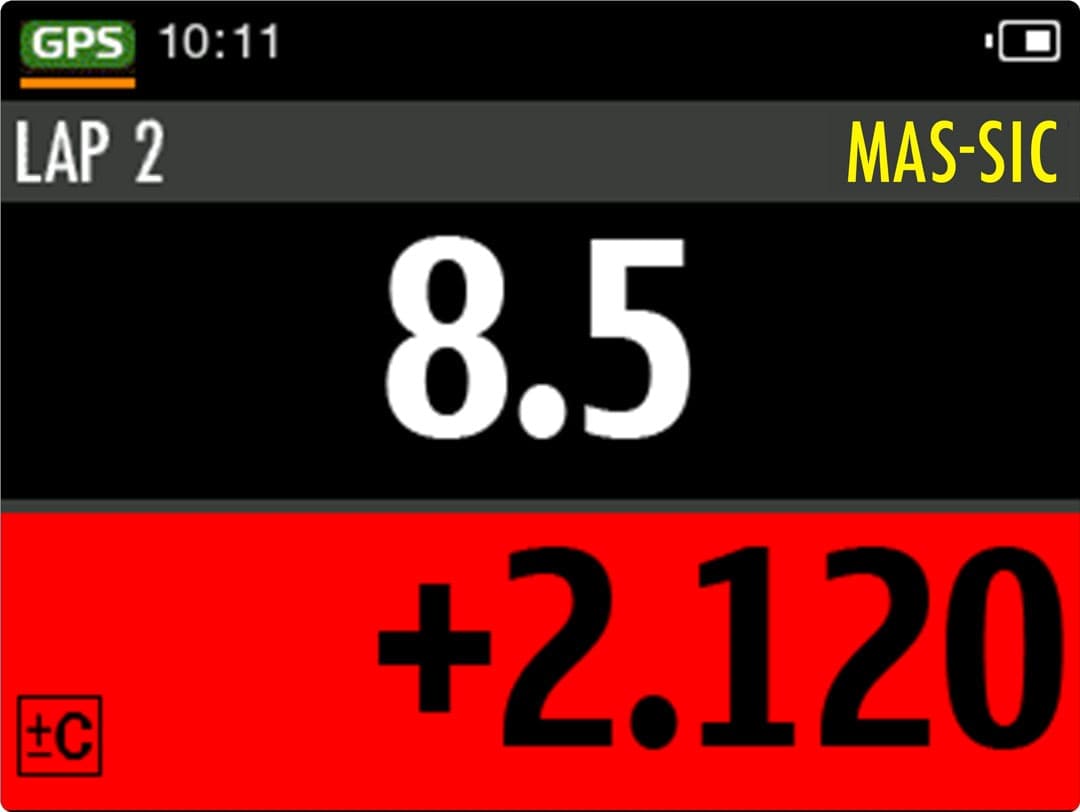

Challenge

Font Black

Rolling Time

Challenge
Time Diff

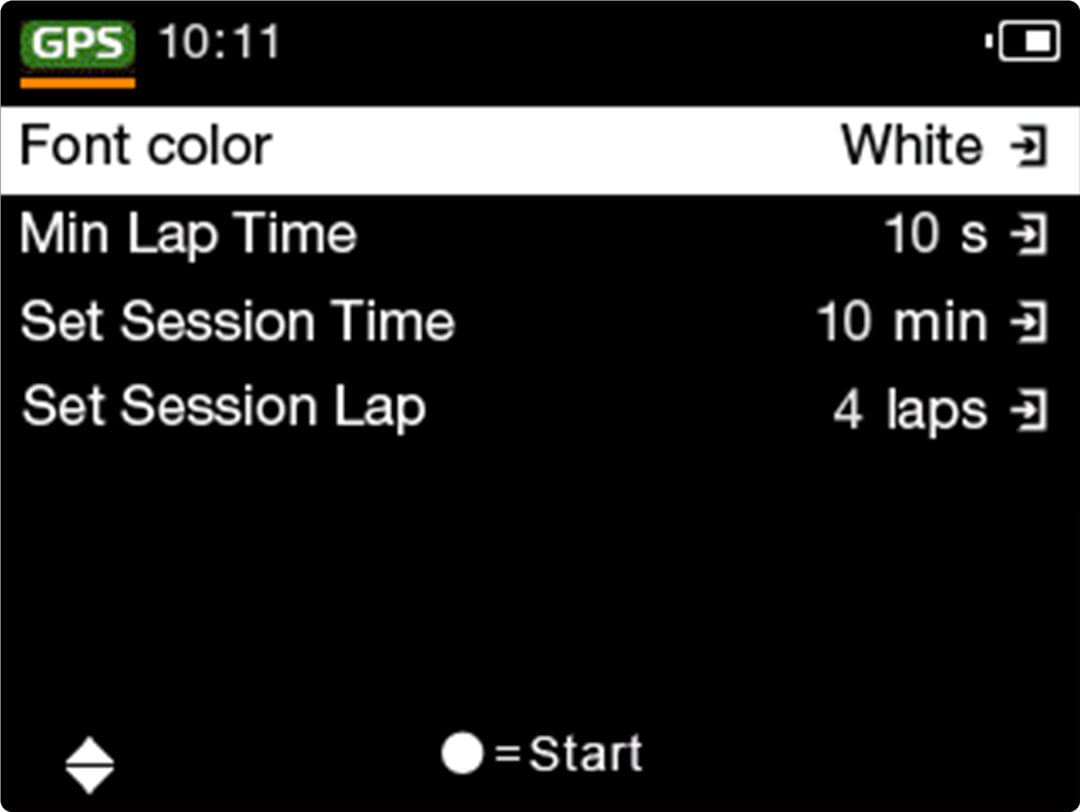

LT-9000S provide user friendly configuration on Circuit Race mode

Set Min Lap time to ignore invalid Lap; set Session Time to remind you remaining session time in real time; or set Session Lap to remind you remaining laps in real time

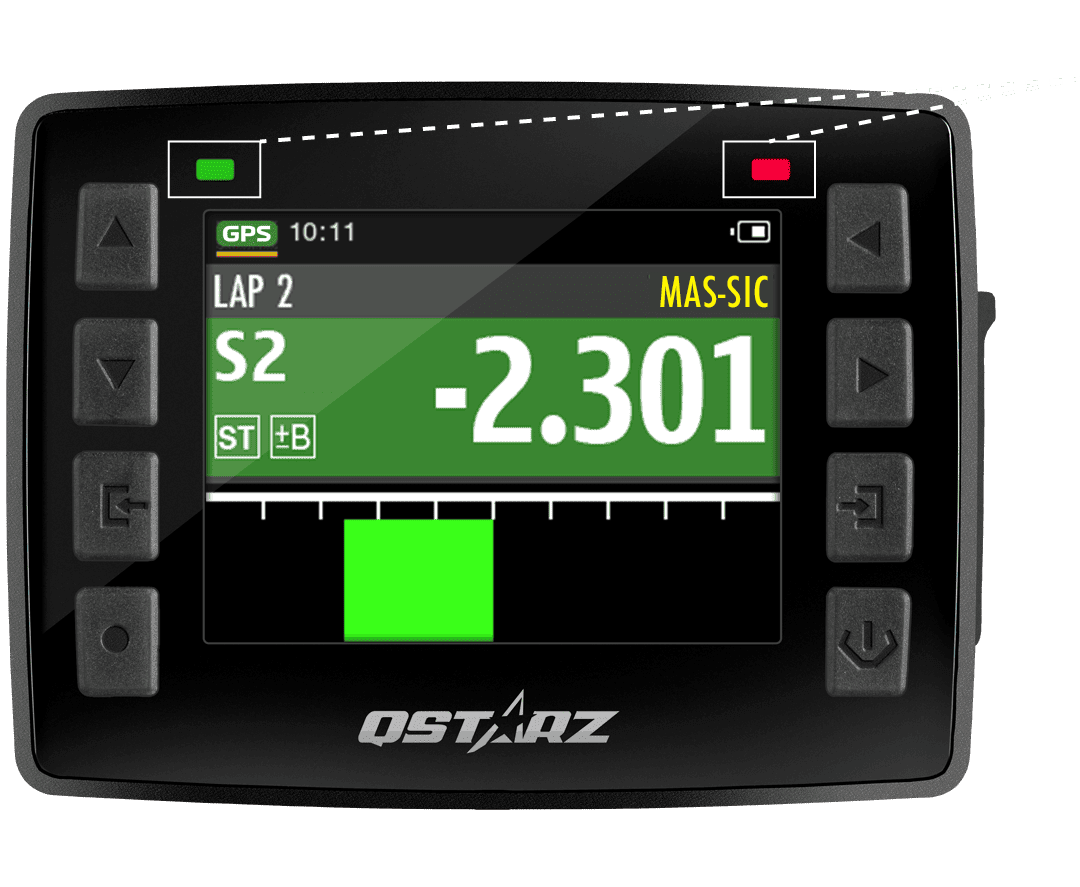

Additional LED Notification during Circuit or Drag mode

• (Circuit Mode) Lap/Split time faster than compared condition:
  Green LED Flashing 6 times (Split), Flashing 12 times (Finish)


• (Circuit Mode) Lap/Split time slower than compared condition:
  Red LED Flashing 6 times (Split), Flashing 12 times (Finish)


• (Prediction Mode) Faster or Slower than Predictive Lap time:
  Faster: Green LED ON, Slower: Red LED ON


• (Drag Mode) Met all enabled conditions before reaching Top Speed:
  Green and Red LED flashing simultaneously

Close

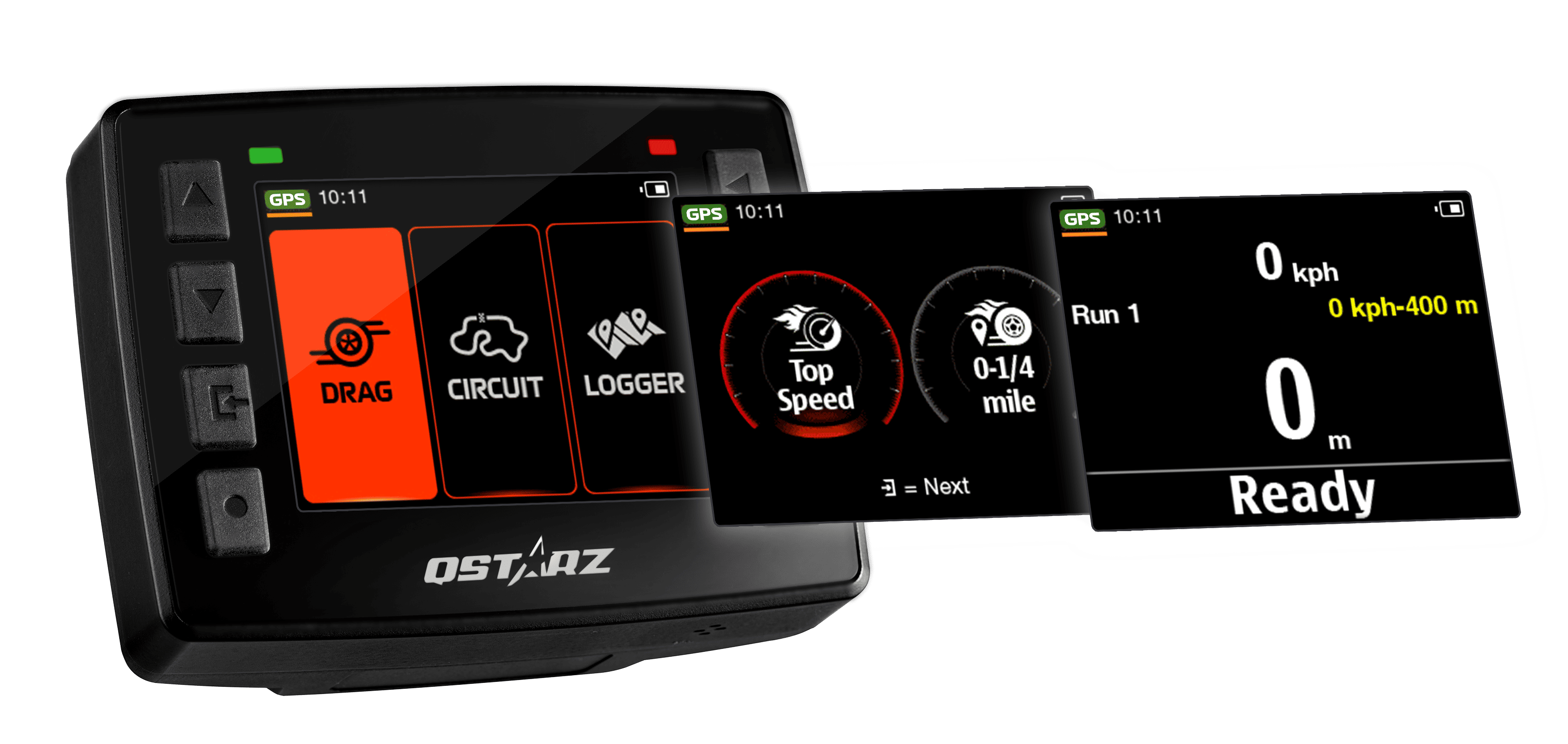

Record your race times across multiple racing modes

"Drag" mode measures top speed and driving performance

The Drag race mode offers a variety of settings, providing endless possibilities for measuring vehicle performance data. You can choose from diverse settings, such as top speed or 0-1/4 mile, to suit your needs. See how fast you accelerate, or even expand the intermediate range to analyze every instant. Enjoy this flexibility!

“Circuit" mode for measuring lap times and predicting your best lap time

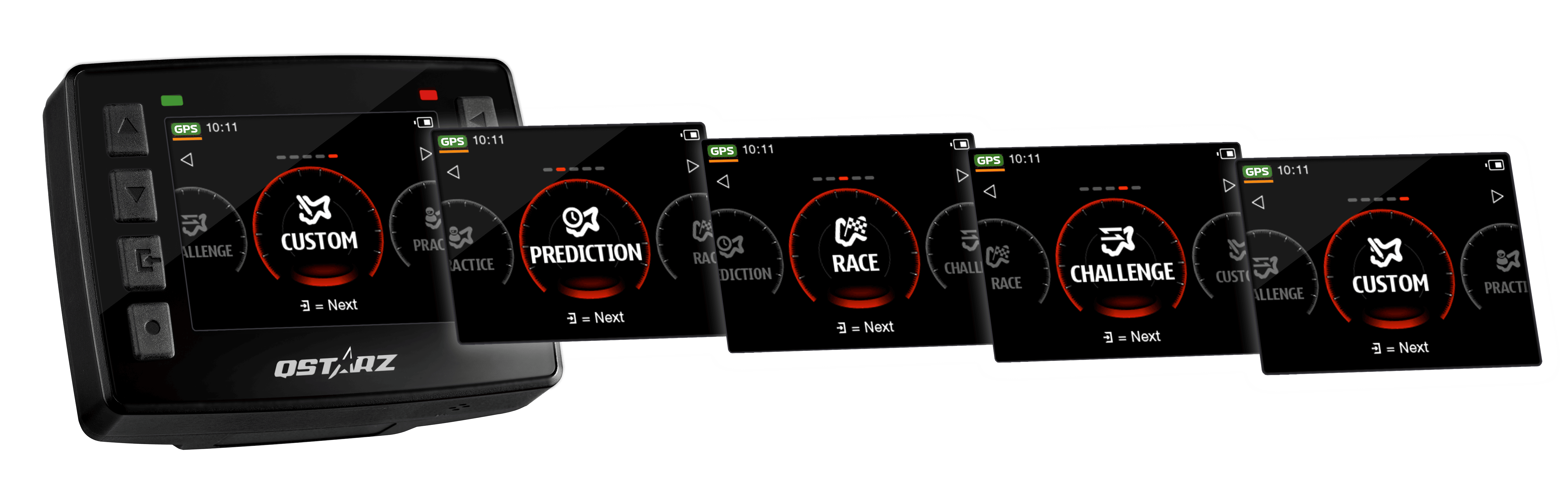

Circuit Race mode measures your lap times and displays your speed on the track. Pre-loaded global tracks make lap time keeping smarter and more convenient. A quick menu design allows you to race according to your different needs, such as Practice, Prediction, Challenge, Race, or Custom. Lap times are displayed in real-time, and different colors indicate whether you are ahead or behind as you cross the start/finish line or split line.

"Logger" mode allows the device to function as a speedometer or trip recorder

Selecting Logger mode will record your trip and provide information such as time, distance, maximum speed, mileage, overspeed warning, points of interest markers and coordinates, etc.

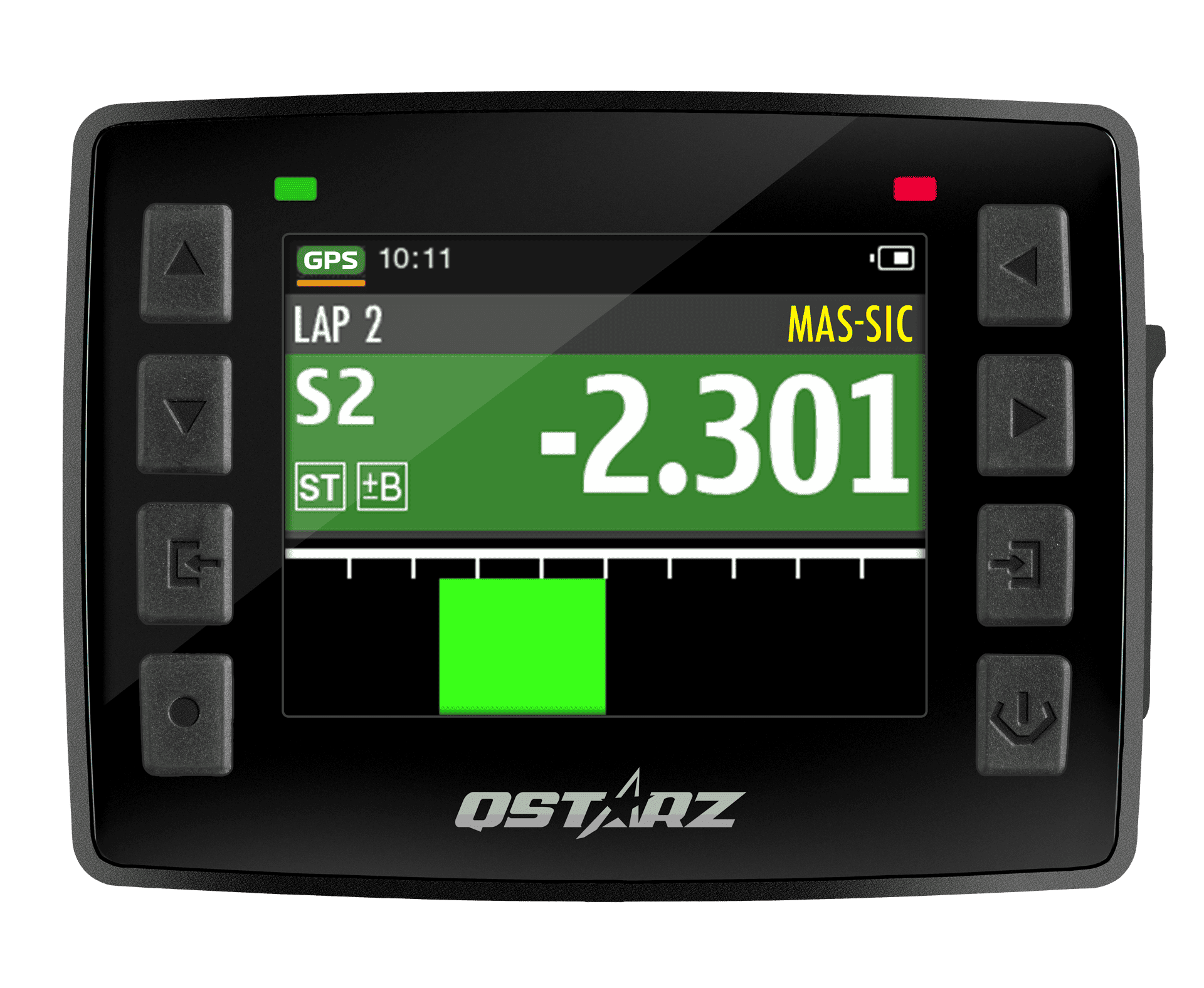

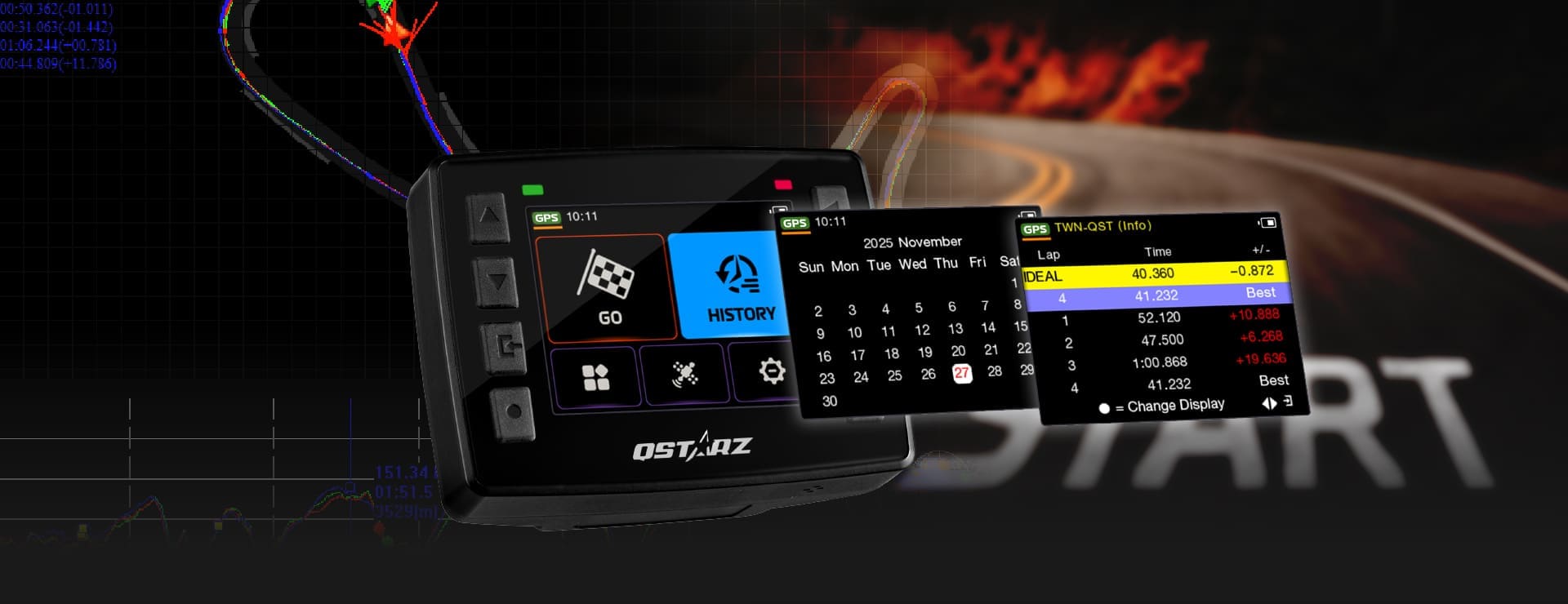

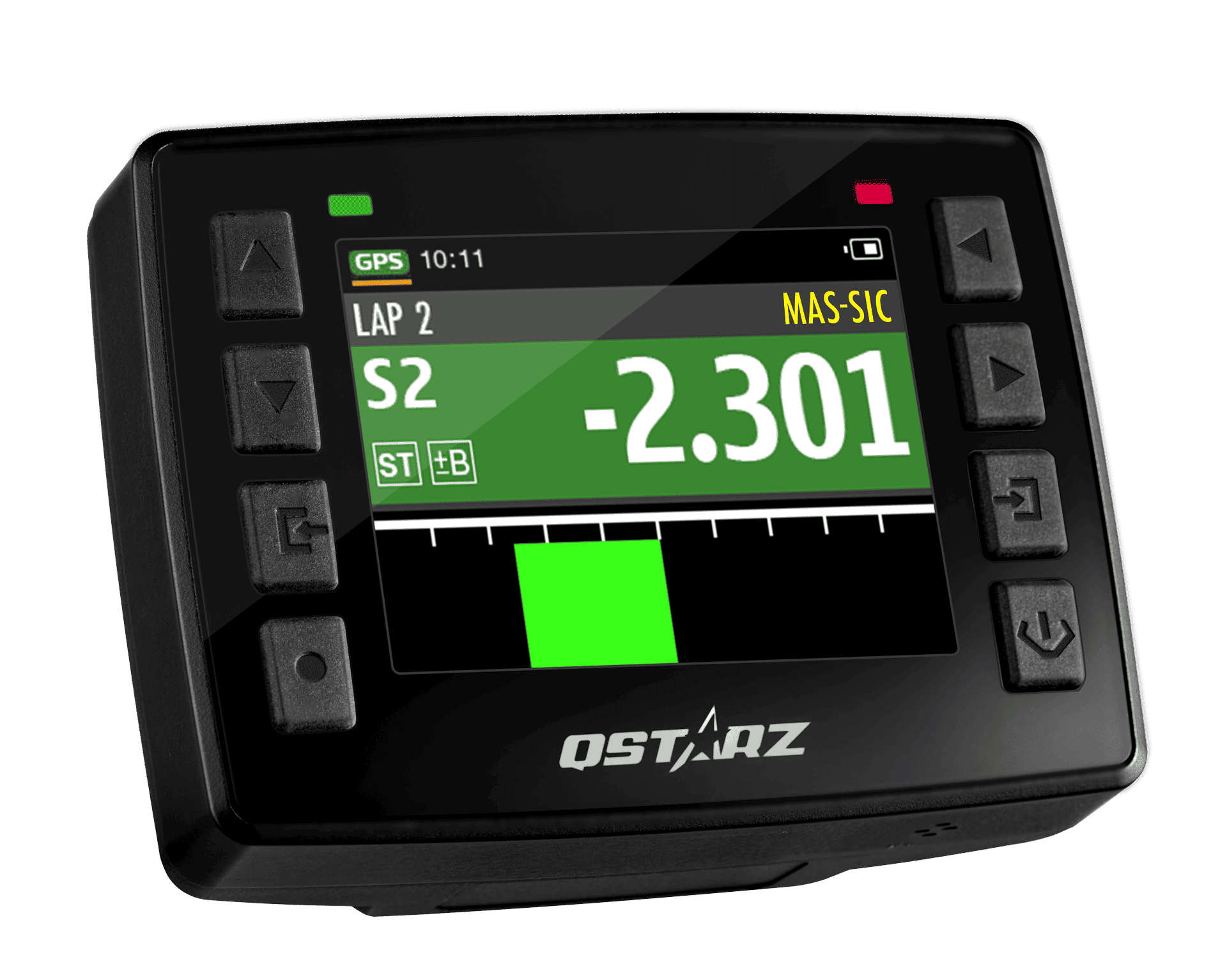

The LT-9000S features a 2.3-inch color LCD display, allowing you to comfortably view your real-time lap times while riding and it’s still easy to mount. LED indicators and a buzzer provide helpful real-time status information. We never compromise.

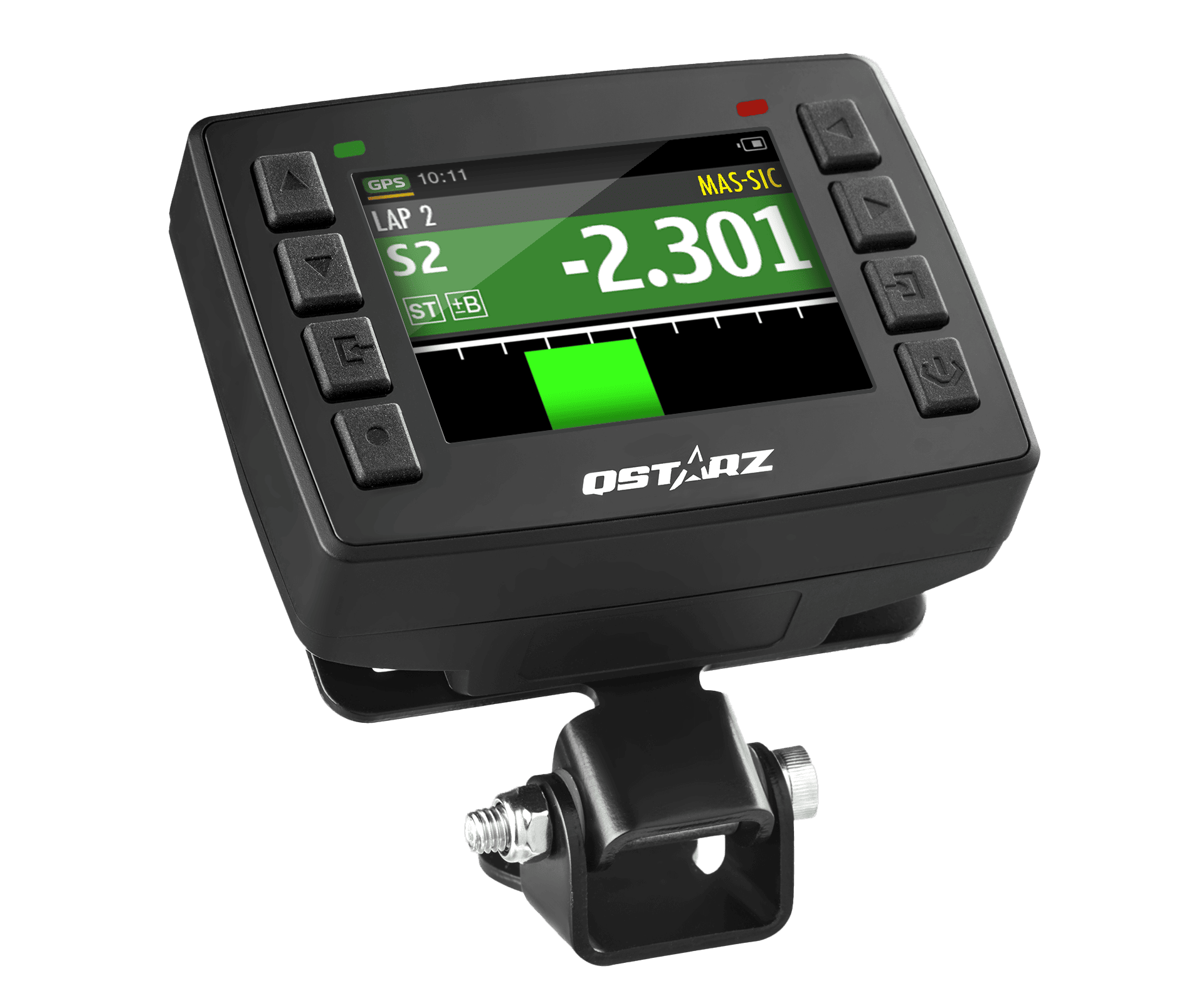

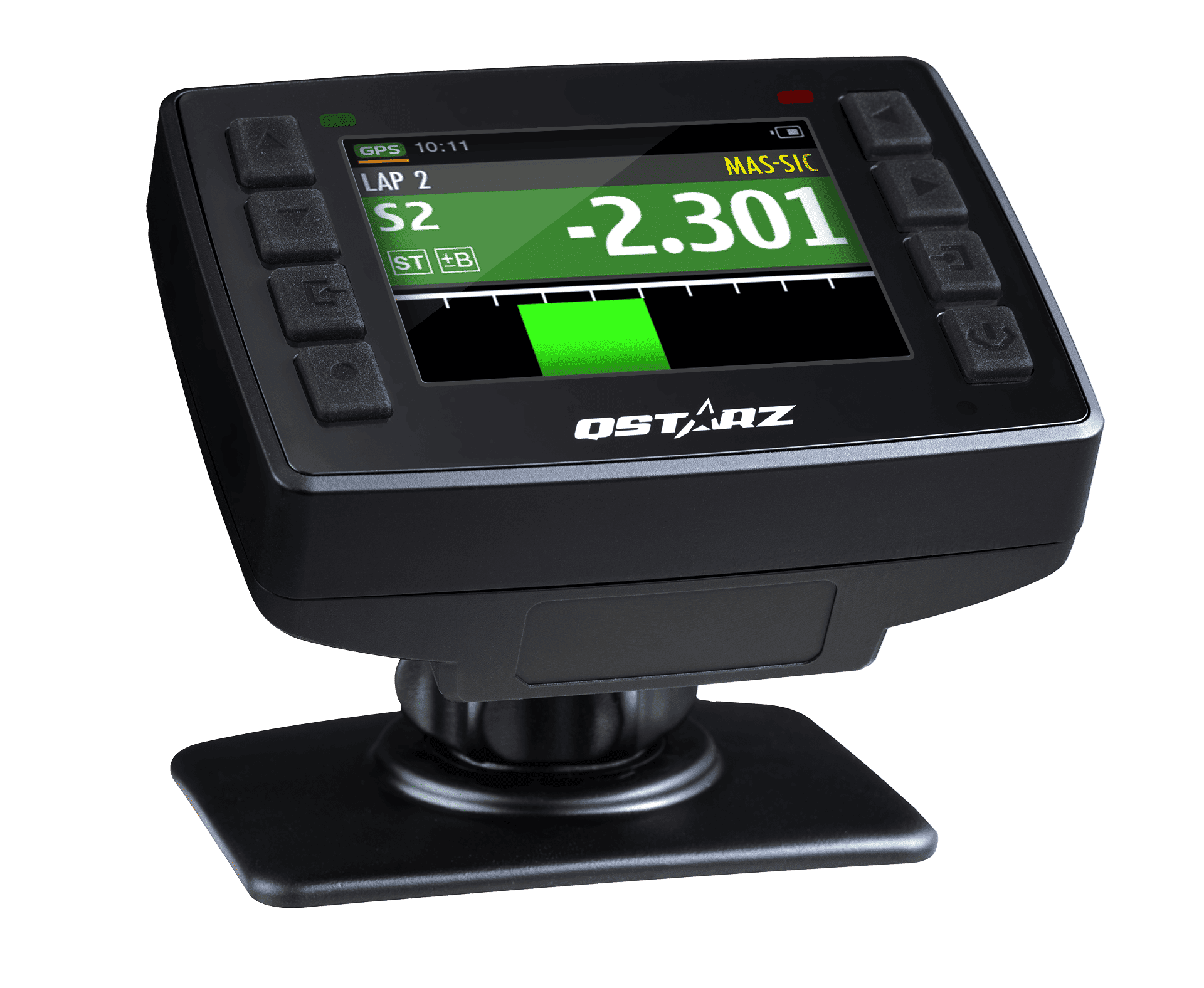

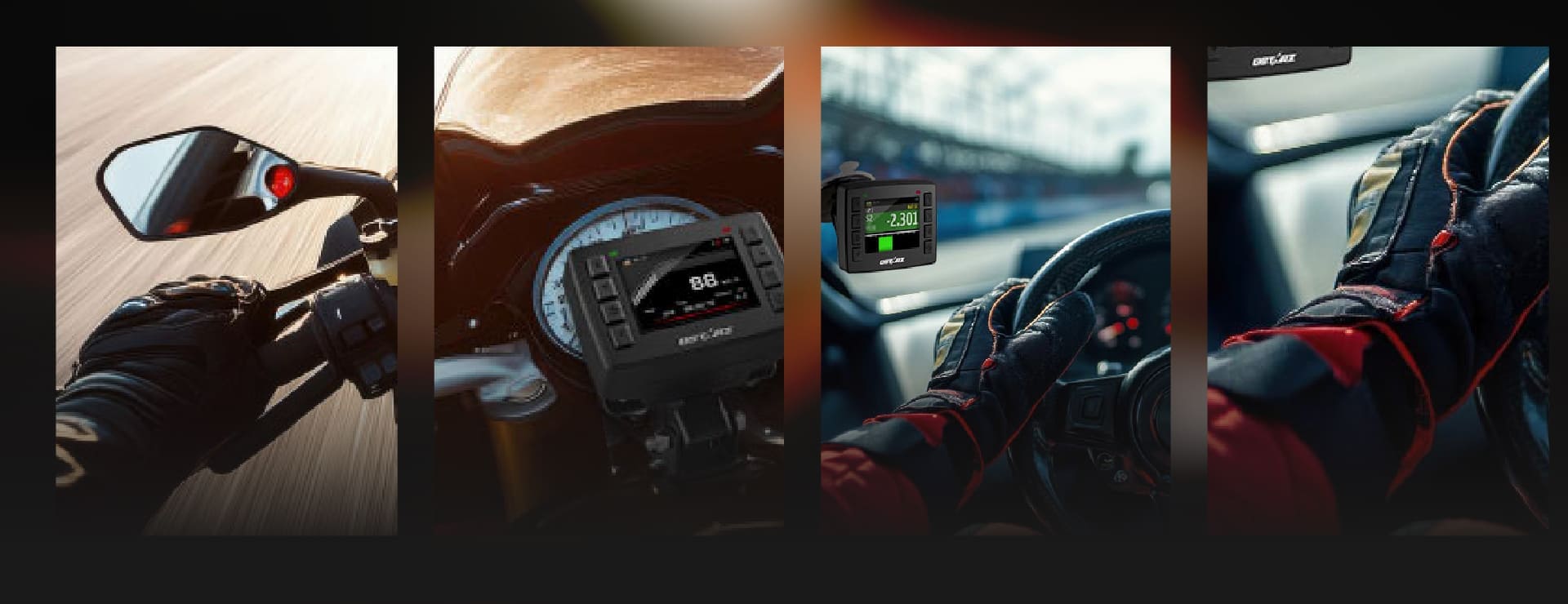

Integrated with a standard 1/4-inch screw hole, 4 cable tie holes, 1 Lanyard hole, and compatible with various mounting methods, allowing for easy installation on cars or motorcycles. Included 3M Dual locks provide another convenient mounting option. You can also choose Qstarz car or motorcycle mount accessories for even more flexible mounting options.

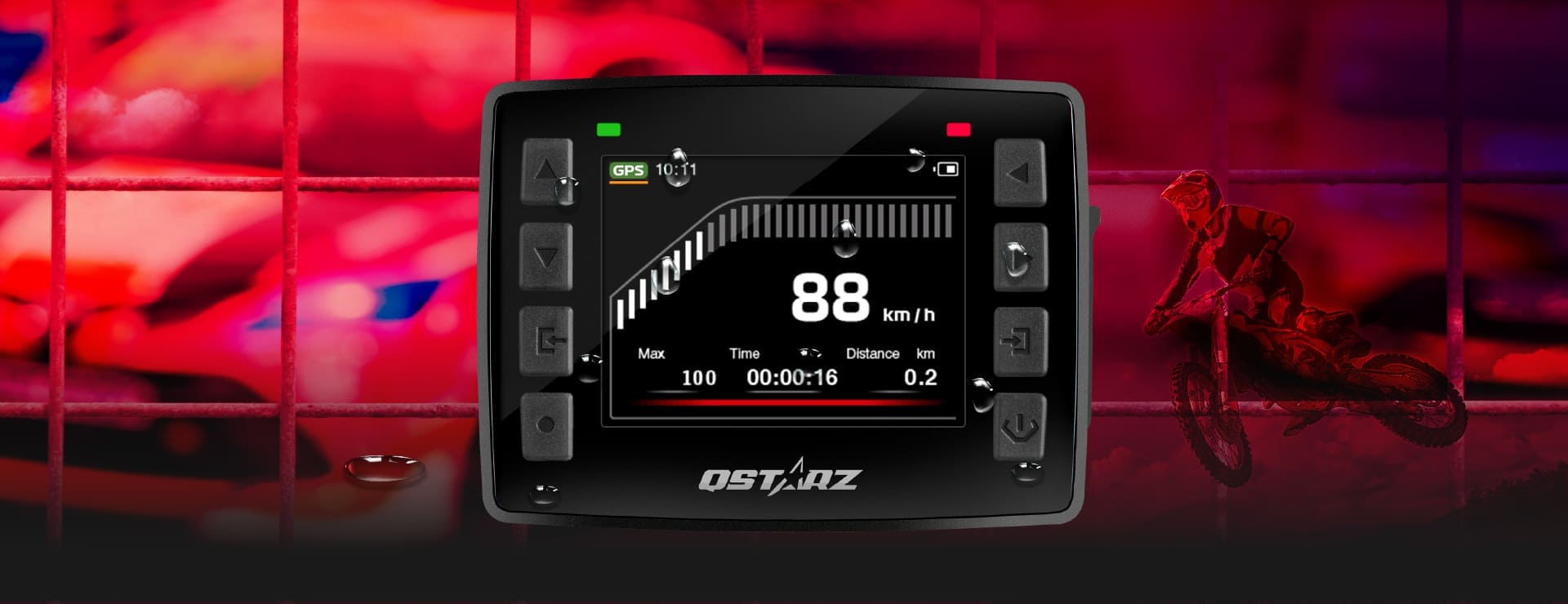

We adhere to the highest protection standards. With an IPX5 water resistant rating, it's safe to use while driving or engaging in any type of outdoor racing in most weather conditions.

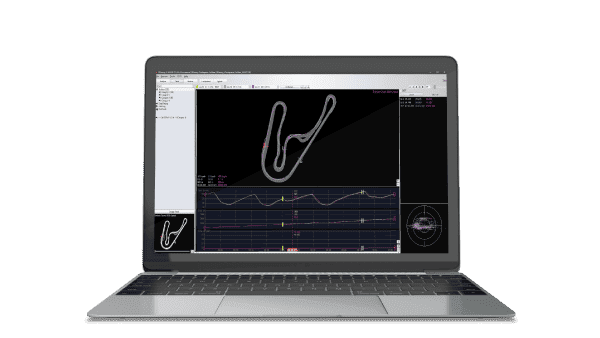

Connect your LT-9000S to your computer via USB to download race data into the QRacing PC software. The powerful QRacing software supports advanced split/sector analysis, room in/out the lap/graph analysis, acceleration/braking point analysis, and line selection analysis. It can also replay up to 3 laps simultaneously for various comparative analyses. Improve your racing performance and driving skills, and challenge for the podium.

Longer battery life, up to 14 hours; larger memory capacity, recording up to 10,000 laps*; built-in accelerometer and gyroscope for more accurate measurements or future lean angle analysis; supports USB Type-C charging, etc.
* The 10,000 laps calculation is based on 2 minutes per lap.

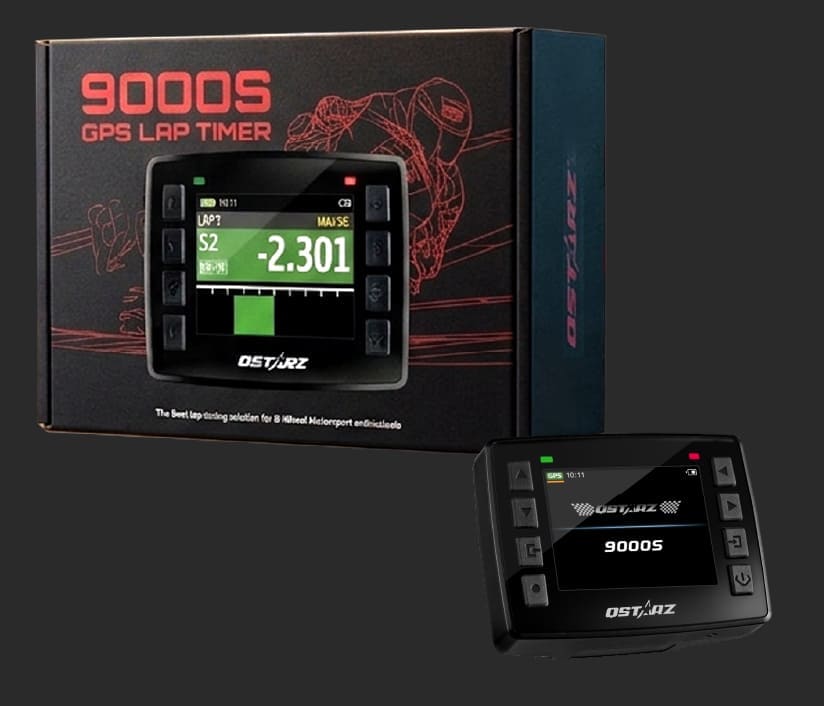

• LT-9000S Device
• USB-C Cable
• 3M Dual Lock x 2 set
• Cable Tie x 4

• LT-9000S XX: Standard pack
• LT-9000S MX1: Standard pack plus CNC Motorbike holder
• LT-9000S MX2: Standard pack plus 3M Adhesive Motorbike holder

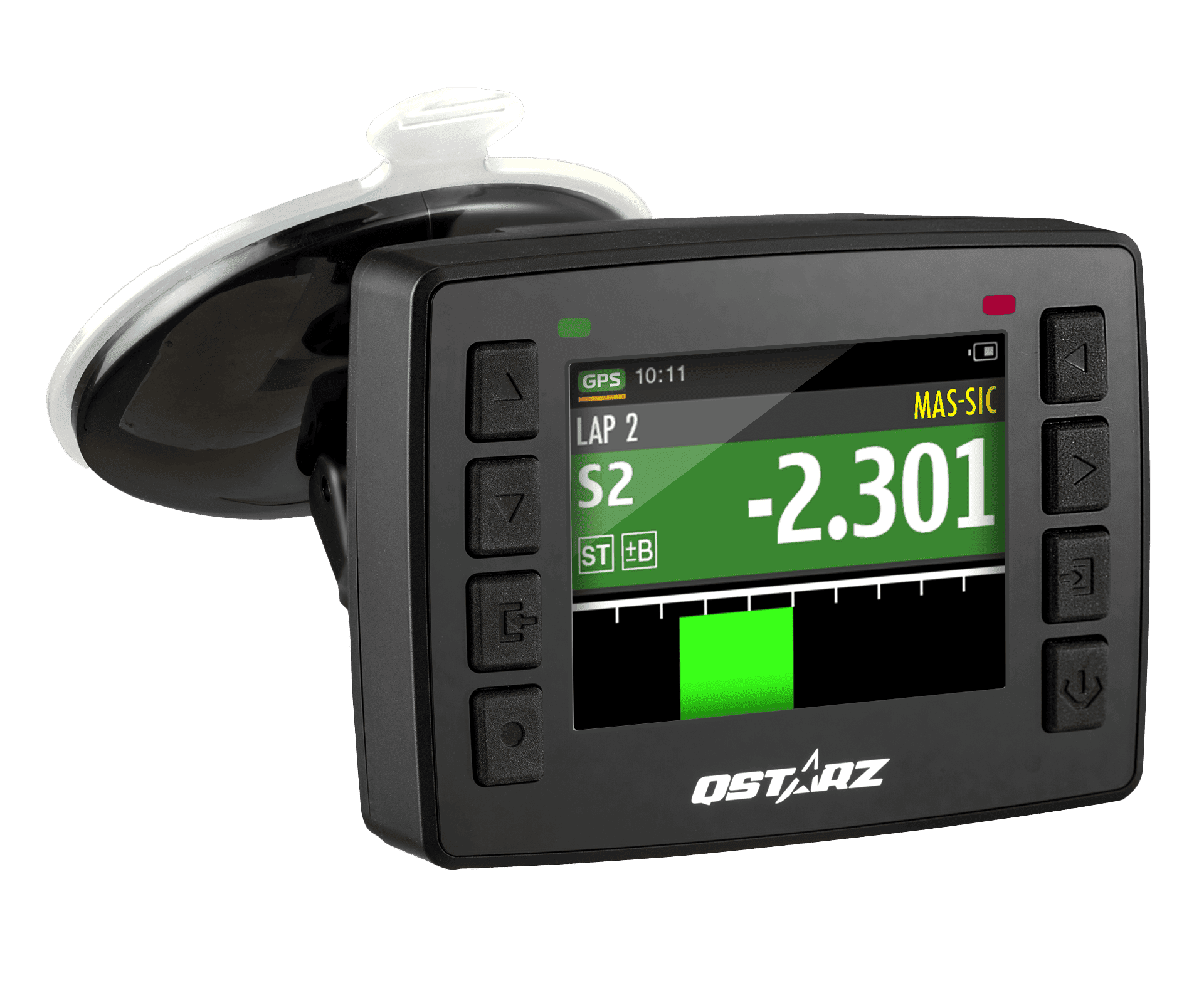

• LT-9000S CX: Standard pack plus Car holder
